CAPABILITIES AND TECHNOLOGIES

SHEET PRINTING

SHEET PRINTING PRESS HEIDELBERG XL-105-5 + L

MAXIMUM SHEET SIZE	750 х 1050 mm
MINIMUM SHEET SIZE	340 х 480 mm
MAXIMUM PRINTING SURFACE	740 х 1050 mm

COLORS XL 105-6 + L + HP 6 INKS + WD VARNISH

SHEET PRINTING PRESS HEIDELBERG XL-105-6 + L

MINIMUM WEIGHT OF PAPER M2	70 g/m2
MAXIMUM WEIGHT OF PRINTED MATERIALS	320 g/m2
MAXIMUM THICKNESS OF PRINTED MATERIAL	0,03 mm to 0,8 mm

COLORS XL 105-5 + L 5 INKS + WD VARNISH

Printing with Pantone mixed ink is made by Pantone Formula Guede color chart. In some cases, coloring is subject to approval by the Customer.

In the presses, XL 105-5+L, XL 105-6+L it is possible to apply water-dispersion varnish (glossy or mat), or aromatic varnish (water-dispersion) from the coating unit in a single pass with printing.

In the presses XL 105-5+L, XL 105-6+L it is possible to print with flavored varnish (oil) in a single pass with CMYK printing.

UV COATING

SHEET COATING PRESSS HEIDELBERG CD 102-LYX

MAXIMUM SHEET SIZE 720 х 1020 mm

MINIMUM SHEET SIZE 280 х 420 mm

COATING CAN BE MADE WITH GLOSSY AND MAT UV VARNISH. SPOT UV COATING IS PERFORMED WITH THE SPECIAL FORM (FOLEX)

The size of the coated elements (length x width) must be at least (4x4 mm). The element for the spot coating is subject to agreement with the OGT. The spot coating files are made by the customer. The information on the size of the files and correctness of production thereof can be obtained from the prepress staff.

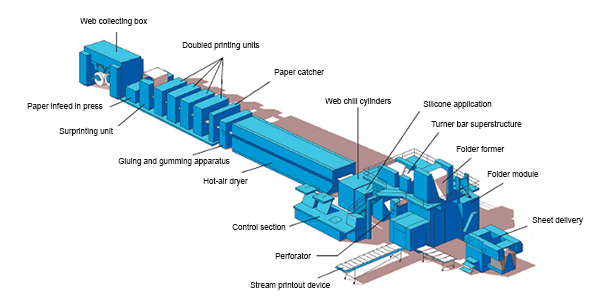

WEB PRINTING

PRINTING PRESS HEIDELBERG/GOSS SUNDAY

MAXIMUM PERFORMANCE	Up to 90 000 impression/hour (the volume of up to 24 A4 pages) or 45 000 impression/hour (up to 48 A4 pages)
MAXIMUM INK LIMIT	4+4
CUT-OFF	578, 590,598, 620 and 630 mm
MAXIMUM ROLL WIDTH	1450 mm

PRINTING PRESS HEIDELBERG/GOSS M600

MINIMUM ROLL WIDTH *The maximum and minimum roll width depends on the folding type (see Table)	420 mm
MAX. PAPER WEIGHT	135 g/m2
MIN. PAPER WEIGHT (BY PRESS DATASHEET)	35 g/m2
SHEET DELIVERY	200 g/m2 of paper, or roll paperboard

THE WEIGHT OF THE USED PAPER IS LIMITED TO THE FOLDING TYPE

*If one cannot meet these requirements, the printed paper tests are needed

A2 Newspaper format (folded to A3)

Min 60 g/m²
Max 135 g/m²

4 , 6*, 8*, 12*

A3 Tabloid format

Min 60 g/m²
Max 115 g/m²

4, 8*, 12*, 16*, 24*

A3 Square tabloid

Min 60 g/m²
Max 115 g/m²

4, 8, 16*, 20*, 24*, 32

А4 Magazine format

Min 35 g/m²
Max 115 g/m²

2*, 4*, 8*, 10*, 12*, 16*, 20*, 24*, 28, 32*, 40*, 48*

А4 Broad magazine format

Min 35 g/m²
Max 115 g/m²

2, 4, 8, 12, 16, 20, 24, 28, 32, 48

А4 Broad magazine format (reverse)

Min 35 g/m²
Max 115 g/m²

2, 4, 8, 12, 16, 20, 24, 28, 32, 48

SLIM JIM format

Min 35 g/m²
Max 65 g/m²

16, 20, 28, 32, 40, 48, 56, 64

А5 Digest 2UP format

Min 35 g/m²
Max 65 g/m²

16, 24, 32, 48

А5 Digest 1 UP format

Min 35 g/m²
Max 65 g/m²

12, 16, 24, 32, 40, 48, 56, 64

Delta format

Min 35 g/m²
Max 65 g/m²

12, 18, 24, 30, 36

Delta chopped format

Min 35 g/m²
Max 65 g/m²

24, 30, 36, 48, 60, 72

POSSIBLE ADDITIONAL SIGNATURE IN PRINTING PRESS

GLUING OF SIGNATURES ALONG THE BACK

STAPLED SIGNATURE

1, 2, 3, 4-SIDED TRIMMING OF THE PRODUCTS

* - POSSIBLE TO REDUCE THE CUT SIZE ON THE RIMA SYSTEM DELIVERY STACKER IN THE SUNDAY PRINTING PRESS, DUE TO POSSIBILITY OF 1, 2, 3, 4-SIDED TRIMMING OF SIGNATURES

SIZE	NUMBER OF PAGES	TRIMMING/WITHOUT BINDING	GLUING	STAPLE
А4/А4 SLIM JIM Book	2
	4
	6
	8
	10
	12
	16
	20
	24
	28
	32
	36
	40
	48
	56
	64
А4 Broad	2
	8
	12
	16
	20
	24
	32
	40
	48
А5 Book	2
	4*
	16
	24
	32
	42**
	48
	64
	96
А5 Broad	2
	4*
	8
	16
	32
Delta Broad	2
	4*
	12
	18
	24
	30
	36
	42
	48
А3 Book	2
	4
	6
	8
	12
	16
	24
	32

*Nested/at random

Delta A5 42 stripes with a sizing of 110 (130) x 150 (180)

OPTION – PFF MODULE ON WEB PRESS

PFF module - enables the manufacture of products (covers, patches) cut in A4 size, receive printed from one printed impression four separate signatures of 4 pages (Figure 1) or two signatures of 8 pages (Figure 2) at using the full-width paper web (roll) (965 mm).

Possible to use the coated and non-coated paper with 55 to 115 g/m2 weight

4 signatures of 4 pages
(stripes)

2 signatures of 8 pages
(stripes)

OPTION – SHEET DELIVERY OF THE WEB PRINTING PRESS

This option allows obtaining the printed material in the form of the sheets on the web press, and not in the form of the folded signatures. This option allows printing magazine covers on the web press with the performance of 6-8 times more than on the sheet press.

Max. paper weight	200 g/m2, roll board
Min. paper weight	60 g/m2

Possible UV coating of impressions after the sheet delivery. The term of manufacturing of the products at coating of the impressions after the sheet delivery increases by 3 days. UV coating: continuous and spot coating with the gloss or mat UV varnish.

The impressions after sheet delivery can be folded on the buckle folder by all possible types of folding described below, depending on the paper weight and technical characteristics and features of the folders.
